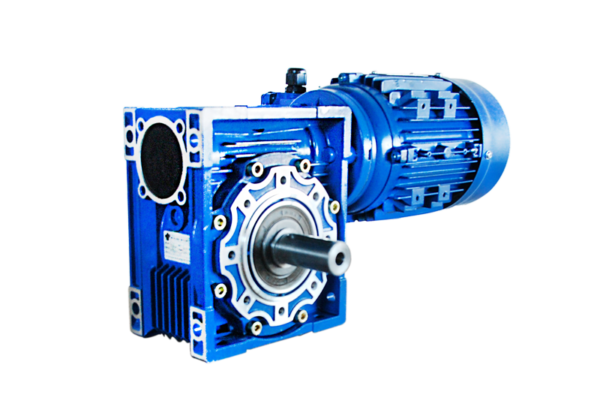

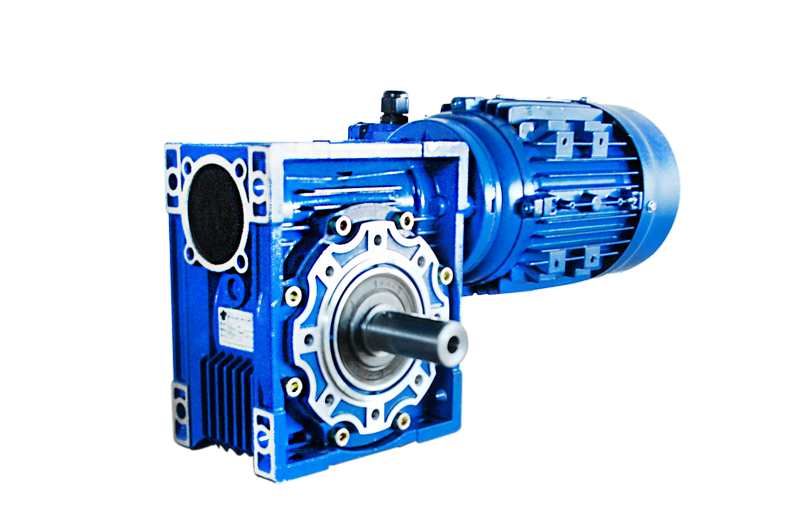

Right Angle Geared Motors MMV 075 0.55kW 18rpm Service Factor 1.1

$585.00

100 in stock

The result is a high quality multi-mount range of motors with certified lE2 efficiency and have standard features that are options on some of the main competitor products:

      • Output Speed 18rpm
      • Ratio – 80:1
      • Torque 183Nm
      • Right Angle Geared Motors Type MMV 075
      • Motor Power 0.55kW
      • Motor Speed 1400rpm Nominal ( 4 Pole )
      • Motor Mounted B14

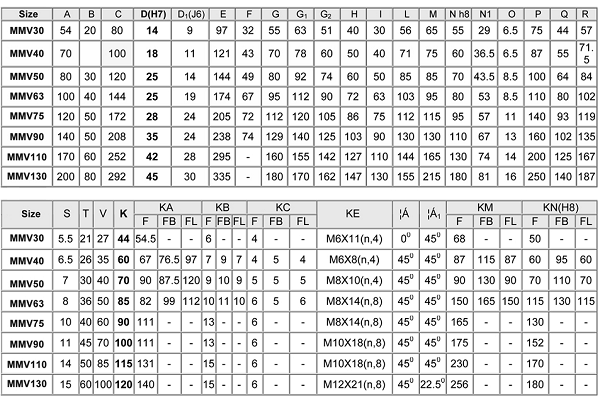

Product Brochure   Dimensions Table

SKU: MMV75-18RPM-0.55KW Categories: ,

$585.00

Supply Voltage *

Optional Add-On *

Description

Geared Motors MMVP075

Melbourne Machinery offers a high quality range of Geared Motors combining the quality and value for money.

Geared Motors MMVP075 Ratio 80:1

Right Angle Geared Motors size MMV 30 to 90 in alloy

Right Angle Geared Motors size MMV 110 to 150 in heavy cast iron



Please chose a gear box output (included in price)

1. Solid shaft out

2. output flange

3. output Torque arm

4. no output leave as a hollow



Other options available (contact Melbourne Machinery for details)

Double reductions to give ratios up to 8000:1

Variable speed plus or minus 80%

240 volt motor

Specification

Additional information

Speed (RPM)

Power(kW)

Service Factor
